Amodo RFID Chicken Tracker
On 11th September 2026 we released a flock of hens wearing passive RFID leg rings onto our custom tracking floor — a 2 m × 2 m arena of 144 coils, no cameras or on-bird batteries. Everything below comes from the raw capture.
Movement tracking
The first hour of movement, at super-speed...
One dot per identified bird · grid = 12×12 antenna coils covering 2 m × 2 m · positions from raw reads, no interpolation between coils beyond display smoothing.
Leg tag
The passive tag is 22mm in diameter.
Hen stats
Average walking speed while each bird was on the floor.
Individual territories
Each bird's share of floor time - Bluebell patrols the edge while Marigold sticks to the middle.
Behaviour over time
Average walking speed per bird on the floor, in two-minute bins. The sprint at release settles toward a steady patrol pace.
Dash for feed
At 10:25, we threw feed into the bottom right corner of the pen, resulting in a flurry of activity
Position heatmap
Floor use over the full 2 hours. Watch the early wall of exploration condense into preferred zones.
Who keeps close to whom
Mean pair separation, in metres (floor diagonal 2.8 m). Brighter = closer company.
The antenna floor

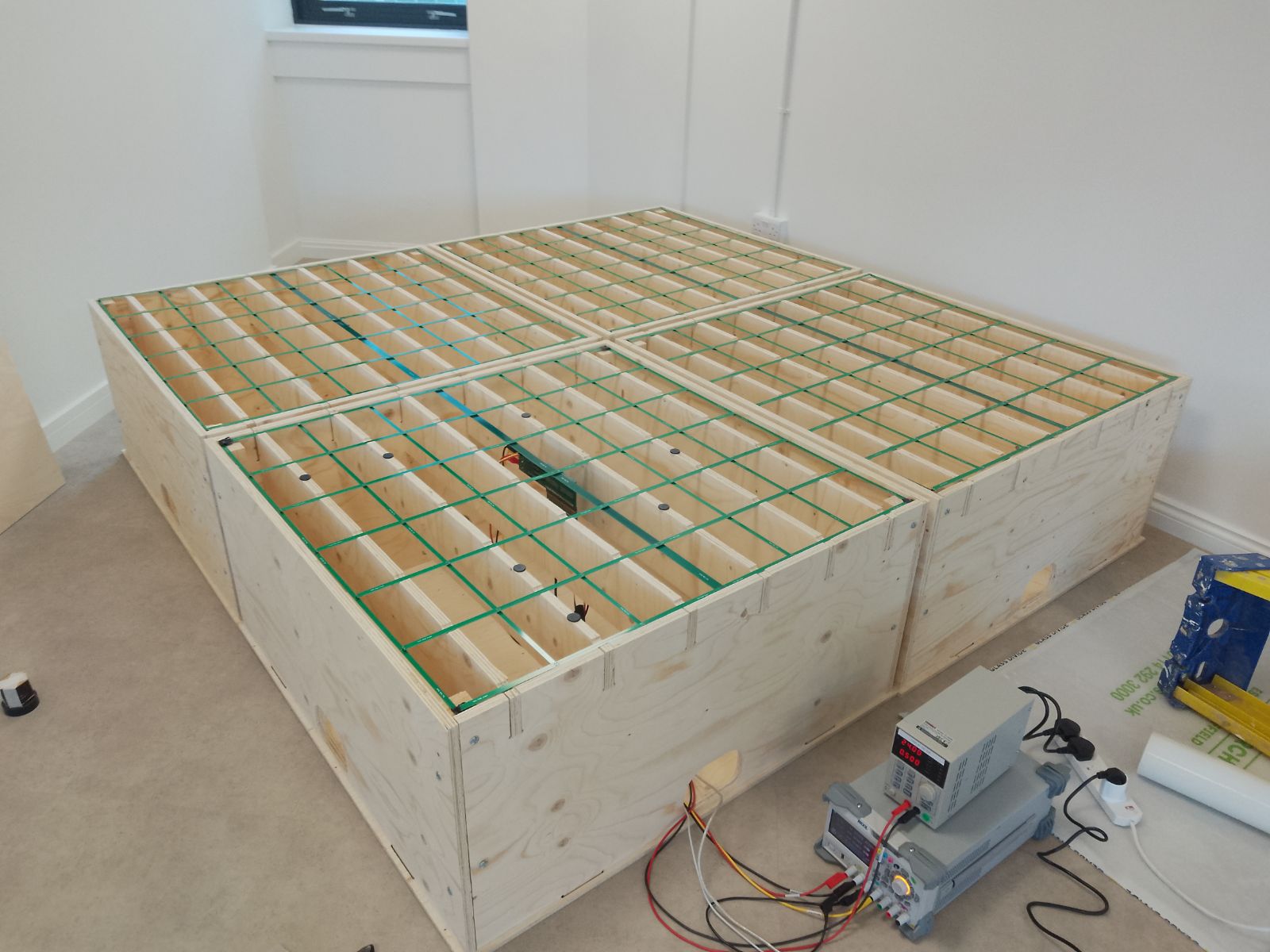

The tracking floor before its top surface went on: four plywood quadrants, each carrying a 6 × 6 grid of coils, with the reader boards recessed beneath. Bench power supply and scope on the right during commissioning.
Individual identity, position and activity with zero on-bird electronics.
synchronized full-floor scan every 0.61 s · RS485 multi-drop · 100% reader uptime over 19.7 h
